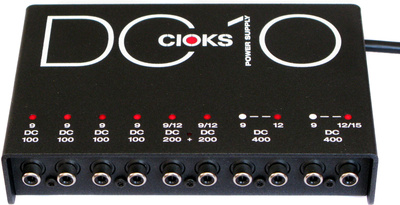

DC10 is a member of CIOKS brand new professional range of dedicated multi-output power supplies for effect pedals. It has 10 regulated and well filtered DC outlets configured in 8 isolated sections. With a total of 1.600mA it's a perfect solution for bigger rigs only with pedals using a DC power source. Its three powerful sections with 400mA each will power pedals with special requirements like those from TC Electronic Nova series, Eventide Factor series, MoogerFoogers, Radial Tonebone or others without the need of custom cables. Selectable with a switch DC10 offers voltages 9, 12 and 15V DC, and combined with one of the included Stack Flex also 18 and 24V DC. The first 4 outlets offering 4x100mA are perfect for standard 9V battery operated pedals.
Features:
- 10 outlets configured in 8 isolated sections
- toroidal transformer with additional magnetic field shielding
- 3 powerful DC sections with 400mA each
- 15V option for Radial Tonebone pedals
- short circuit protection of all outlets
- advanced LED monitoring of each section
- temperature monitoring
- 115V/230V mains voltage selector switch
- 16 Flex cables included
- one Split Flex and two Stack Flex for both 18 and 24V pedals also included
- mounting kit for pedal boards included
- durable steel enclosure with 2mm thick top
- 5-year warranty
Specifications:
Outlet 1-4: 9V DC / 100mA each
Outlet 5-6: 9 or 12V DC / 200mA each*
Outlet 7-8: 9 and 12V DC / 400mA
Outlet 9-10: 9 and 12 or 15V DC / 400mA
* can be merged into a 400mA section
Size: 158x98x35mm (excl. detachable rubber feet)
Weight: 1,1kg
Resources:
[url=]DC10 Features & Specifications[/url]
[url=]CIOKS 10 - Professional range features[/url] - a more detailed explanation of some of the above features.
[url=]Comparison of the Cioks DC10 and Voodoo Lab PP2+[/url]
[url=]Pedaltrain mounting guide[/url]
Here is a [url=]diagram[/url] showing how to power three Eventide Factor Series pedals with the DC10. Note: Two Flex 4 cables are included with the DC10, so if you want to power a third Eventide Factor Series pedals, you will need to purchase an additional Flex 4 cable.
Flex cables included with the DC10:
3 x #1030 CIOKS Flex 1 - 30cm with 5.5/2.1mm centre negative DC-plug (black)
2 x #1050 CIOKS Flex 1 - 50cm with 5.5/2.1mm centre negative DC-plug (black)
1 x #1050-I CIOKS Flex 1 - 50cm with 5.5/2.1mm centre negative straight DC-plug (black)
2 x #1080 CIOKS Flex 1 - 80cm with 5.5/2.1mm centre negative DC-plug (black)
1 x #2050 CIOKS Flex 2 - 50cm with 5.5/2.1mm centre positive DC-plug (red)
2 x #4050 CIOKS Flex 4 - 50cm with 5.5/2.5mm centre positive DC-plug (green)
1 x #5050 CIOKS Flex 5 - 50cm with 3.5mm tip positive mini-jack plug (black)
1 x #6050 CIOKS Flex 6 - 50cm with battery-clip (black)
1 x #1035 CIOKS Split Flex - 30 & 50cm with 5.5/2.1mm centre negative DC-plug (black)
1 x #1022 CIOKS Stack Flex 1 - 50cm with 5.5/2.1mm centre negative DC-plug (white/black)
1 x #4022 CIOKS Stack Flex 4 - 50cm with 5.5/2.5mm centre positive DC-plug (white/green) |
-
|
