[求助贴] 关于KPA的MAIN OUT进声卡录音的问题

[复制链接]
发表于 2017-12-8 22:37:05 | 显示全部楼层 |阅读模式
吉他中国微信公众号
想请问一下各位,如果KPA直接接声卡录音,应该用MAIN OUT的TS口(6.5)还是XLS口(卡农)呢?
我是一直用TS口接声卡的LINE IN,今天翻看说明书突然看到这一段(如图),大概意思是XLS口接声卡用48V供电,英文不好可能理解错误,我用TS和XLS同步录了一下,反向抵消不了,但是听起来一模一样,该有的噪音也都在,声卡是RME的UC,请各位大神帮忙答疑解惑,非常感谢!

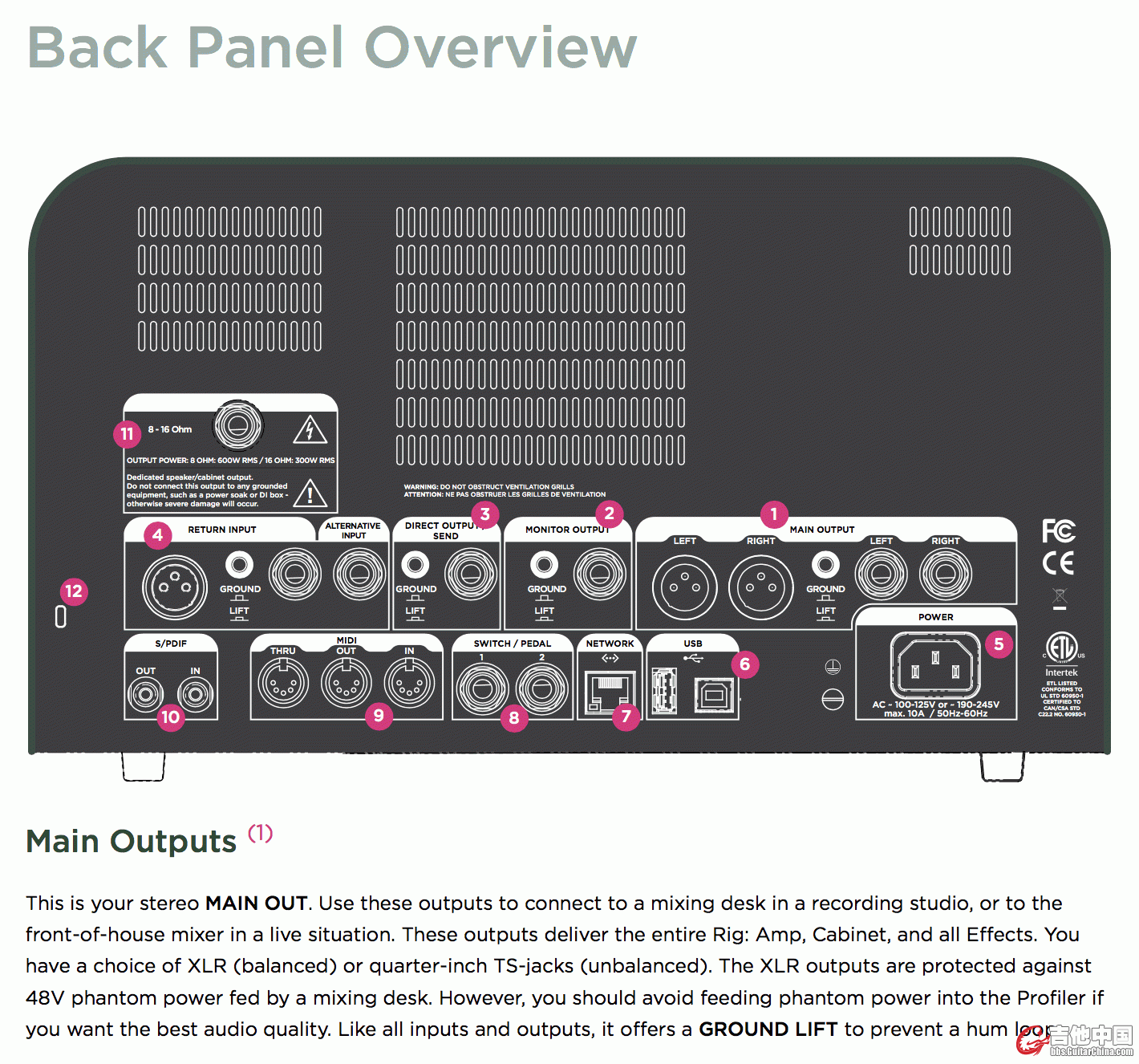

屏幕快照 2017-12-08 下午10.25.30副本.gif

 楼主| 发表于 2017-12-8 22:38:23 | 显示全部楼层
吉他中国抖音
说明书原文如下:
This is your stereo MAIN OUT. Use these outputs to connect to a mixing desk in a recording studio, or to the front-of-house mixer in a live situation. These outputs deliver the entire Rig: Amp, Cabinet, and all E ects. You have a choice of XLR (balanced) or quarter-inch TS-jacks (unbalanced). The XLR outputs are protected against 48V phantom power fed by a mixing desk. However, you should avoid feeding phantom power into the Pro ler if you want the best audio quality. Like all inputs and outputs, it o ers a GROUND LIFT to prevent a hum loop.
发表于 2017-12-9 00:14:19 | 显示全部楼层
GC视频号
"you should avoid feeding phantom power into the Profiler"说的是XLS口接声卡时  不要  用48V供电!

录音最好直接用它的数字输出口直接进声卡的数字输入口,否则多了一次数模转换和一次模数转换。
